SHIMANO XTR M9120 ENDURO 2X12 28-38 GROUPSET

The XTR M9120 Enduro 2x12 Groupset by Shimano - Flexibility and efficiency

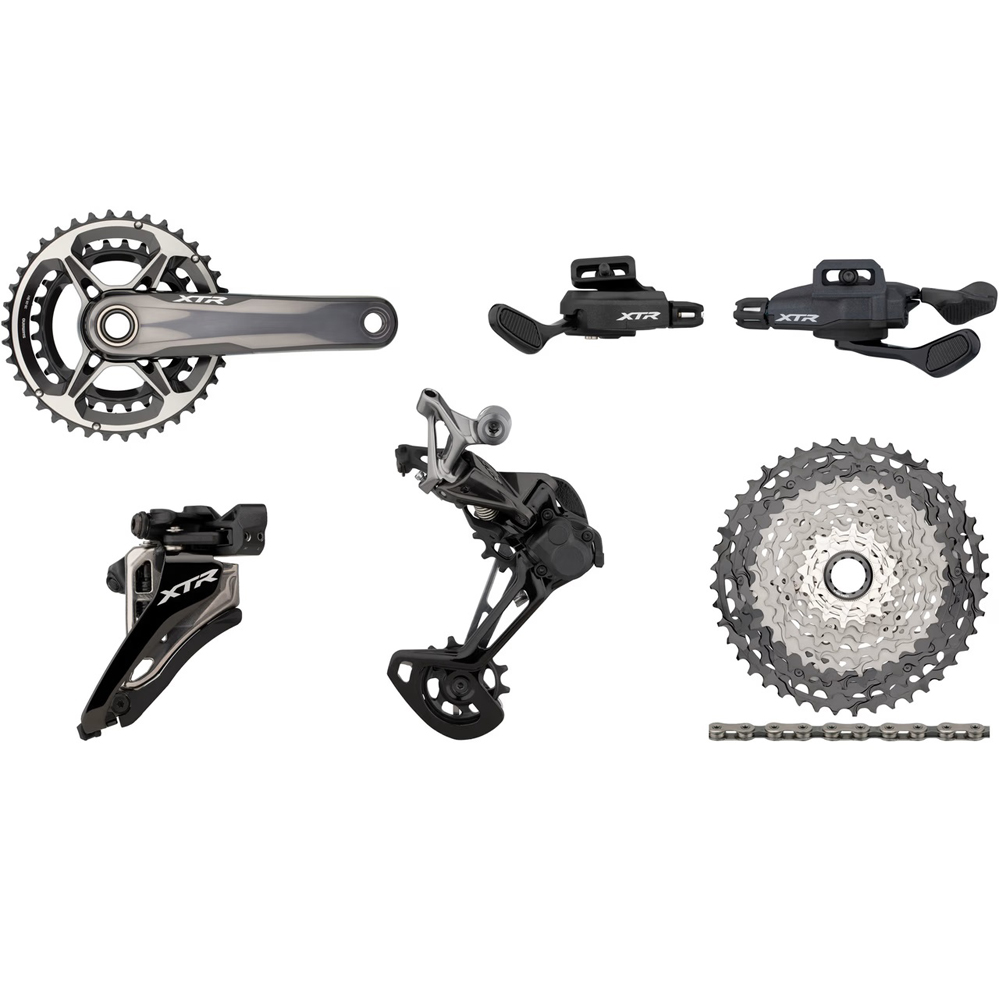

The Shimano XTR Enduro M9120 2x12 groupset is made up of drivetrain components suitable for competitions, but also offers enough flexibility for unknown terrain. In terms of drivetrain efficiency, intuitive and smooth operation and controlled behaviour, it reaches an unprecedented level, with 12-speed compatibility of course being the most striking difference to the previous XTR. The groupset consists of a light and stiff crankset with two chainrings (28-38 T), which in combination with the Quick-Link chain ensure smooth forward motion and even pedalling. Also included are a front derailleur (clamp, E-Type or Direct Mount), a Shadow Plus rear derailleur and a cassette with innovative Hyperglide+ Micro-Spline construction. On the cockpit side Shimano surprises with shifters in an I-Spec EV design, which offers even more adjustment possibilities, and with Rapidfire Mono, which makes the front derailleur easier than ever to operate.

SPECIFICATIONS

Series                           : XTR M9100

Application                  : Enduro

Shifters & Derailleurs  : 2x, 12-speed (mechanical)

COMPONENTS

Crank                            : 175.0 mm (gradation 28-38)

Cassette                        : 10-45

Front Derailleur            : Side-Swing, Front-Pull, Mid Clamp (clamp 34.9 mm, 28.6 mm/31.8 mm with adapter)

                                         Side Swing, Front Pull, E-type (bottom bracket mount, chainstay mount)

                                         Side Swing, Front Pull, direct mount

Rear Derailleur             : long cage (SGS)

Shift Levers                  : I-Spec EV
